Electrostatic Drum Separators

We are a established company involved in designing, developing and supplying excellent quality Industrial Electrostatic Separators and offer it at market leading prices. Electrostatic Drum Separators are designed for separating mixtures of bulk materials, which are differing by their electrical properties. These superior quality Electrostatic Separators are manufactured following international norms and standards to satisfy the customers and maintaining products quality.

Features

This separator is capable of producing high grade concentrates with high recovery of valuables owing to three -step recleaning and facility for heating materials. Besides it consumes little electric power and is environment - safe.

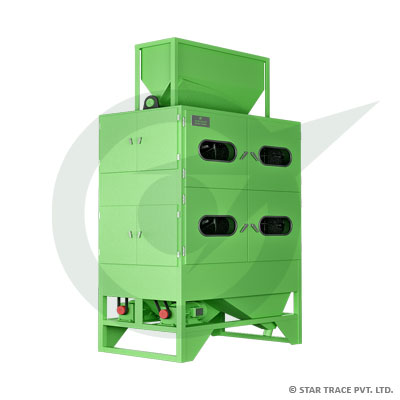

  • Drum Type Electrostatic Separator

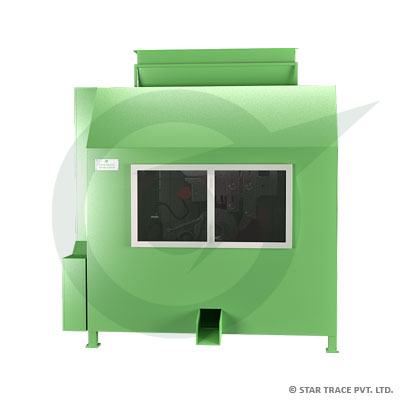

  • Electrostatic Drum

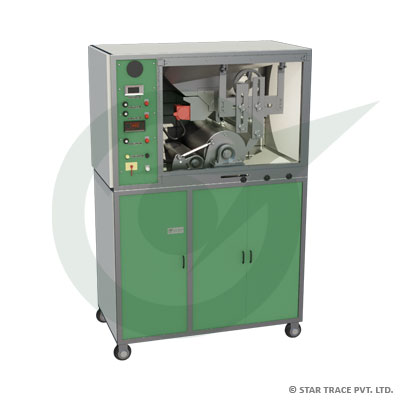

  • Electrostatic Drum Separators

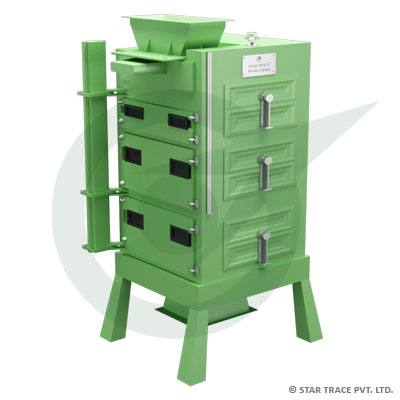

  • Plastic Separators

Applications

  • Beneficiation of ferrous, non - ferrous and rare metal ones.
  • Recovery of metals from industrial wastes (electronic or electrical engineering scrap, cables etc.
  • Recovery of dielectric materials(e. g. plastics) for recycling.
  • Purification of metal and non - metal powders.
  • Separation of industrial minerals(quarts, feldspar, mica etc;).
  • Shape and size classification.

Electrostatic Drum Separator Specification

Model Capacity Particle size
infeed.
mm.		 Collecting electrode
Dia.
mm.		 Collecting electrode
Width.
mm.		 No of Cells Power Input
KW.
Max.		 Overall Dimensions Weight
Kg.
L
mm		 W
mm		 H
mm
STEDS
32/50		 (0.1 0.8)* 0.05-4.0 320 500 3 3 1200 1100 2700 1070
STEDS
32/150		 (0.3-2.5)* 0.05-4.0 320 1500 2 4 2200 1200 3000 2300
*Capacity range in specific weight of the materials.
Note:
  1. Technical data specification subject to change.
  2. Special electrostatic drum separator can be made on request, Please send us your technical data and application, required for our engineers to provide.
